Bafang Mid-drive Motor Kit BBS01B 36V 250W [Black]

Brand	Bafang
Model	BBS01B
Item	Electric Bicycle Modification Kits
Voltage	36V
Power	250W
No-load Speed(Rpm)	83/87
On-load Speed(Rpm)	78/83
Max Torque(N.m)	80
Motor Net Weight(kg)	3.98
Total Net Weight(kg)	5.37
Total Gloss Weight(kg)	6.12
Pole Number(2P)	16
Position	Built-in
Wheel Diamater(Inch)	Optional
Rated Voltage	36/48
Bottom Bracket Length	68 mm
Suitable Bike Size	19- 26 Inch
Structure	Gear Drive
Waterproof Grade	IP 65
Efficiency	≥ 80%
Working Temperature	-20~45°C
dB	Less than 55
Power Sensor	Speed Sensor
Magnet Number(Pulse/Circle)	1
Certification	CE/EN  14764/ROHS
Corrosion-proof grade(h)	96
Gear reduction ratio	1:21.9
Axis Standard	JIS
Color	Black

Features:
Intelligent DC motor system. Effective torque, continuation and power.
Light and take up little space. Easy to assemble.
Suits for mountain bike, folding bike, touring bike. Applicable to 90% bikes(19-26inch).
Built-in controller. 5 Variable speed gear.
With Vehicle speed sensors, power brakes, trigger shifters.

Package Included:

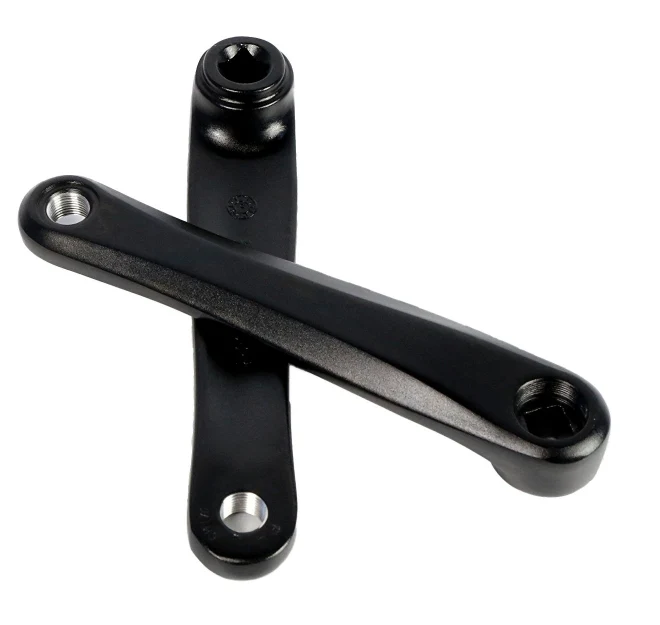

1. Crank

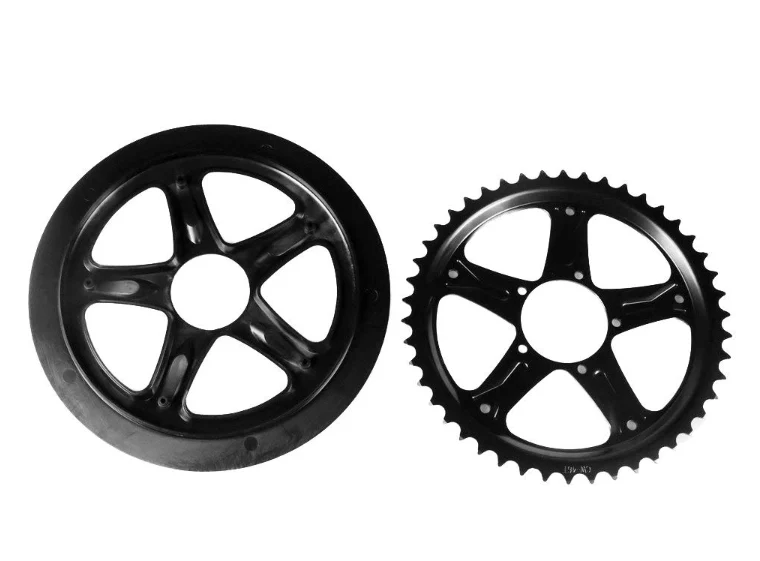

2. Chain Wheel
3. Speed Sensor
4. Power Brakes
5. Trigger Shifters

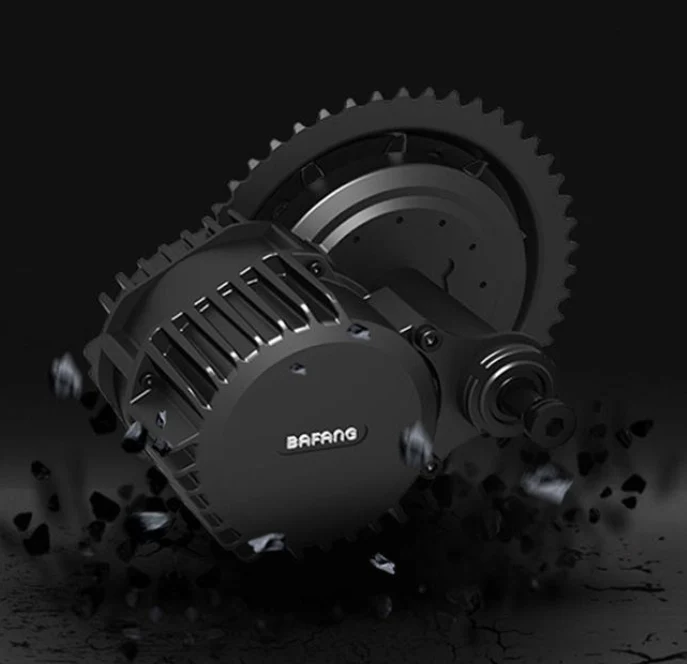

6. Motor
7. Das-Kit L6 Display
