DEHAWK Replacement Battery for NCM Hamburg, Munich [Black]
HomeStore

DEHAWK Replacement Battery for NCM Hamburg, Munich [Black]

DEHAWK Replacement Battery for NCM Hamburg, Munich [Black]

Select Size
From $268.51
DEHAWK Replacement Battery for NCM Hamburg, Munich [Black]—
$268.51

The Story



Model

BKR23615HSB
(36V 15Ah 540WH)

 BR3S3613HB
(36V 13Ah 468WH)

Voltage (nominal)

36V

 36V

Capacity

15Ah

 13Ah

Energy

540Wh

 468Wh

Theoretical range with usual usage

60-80km

 50-70km

Cell

 Lithium-Ionen NCM18650High Power Lithium-Ionen NCM18650High Power

Internal resistance

160mΩ

 =180mO

Minimum capacity

14.5Ah

 12.5Ah

Standard charge

Constant current 2A Constant voltage 42V, 200mA cut-off

 Constant Current 2A, Constant Voltage 42V, 200mA Cut-Off

Standard discharge

Constant current 6.25A, final voltage 28V

 Constant Current 6.25A, End Voltage 27,5V

Cycles

500,> 60% capacity

 500,> 60% Capacity

Max. Charge current

4A

 4A

Max. Discharge current

15A

 15A

Charging temperature

0-45℃

0-45℃

Operating temperatur

0-60℃

0-60℃

storage

Temperature 15-35℃ at humidity 45-75%

Temperature 15-35℃ at humidity 45-75%

Dimensions

Battery Dimensions:
Length x Width x Height
360 x 160 x 70 mm

Battery Dimensions:
Length x Width x Height
360 x 160 x 70 mm

Total weight

3.55kg

 3.45kg

Charger

included (2A charging current)

 included (2A charging current)



Suitable for the following bike type/models

  • NCM Hamburg
  • NCM Munich

Package Includes:

  • 1x Battery
DEHAWK Replacement Battery for NCM Hamburg, Munich [Black] - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

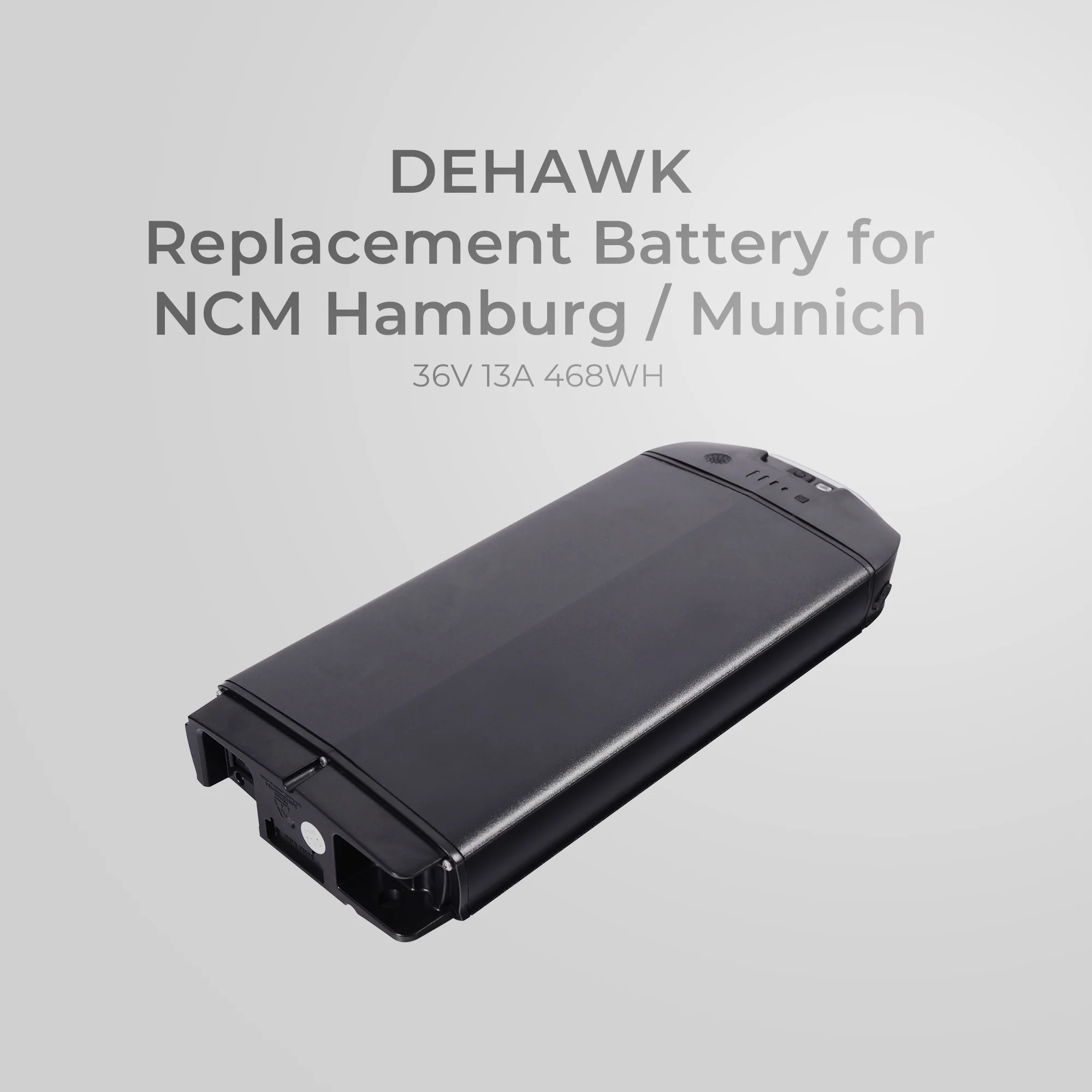

DEHAWK Replacement Battery for NCM Hamburg, Munich [Black] - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

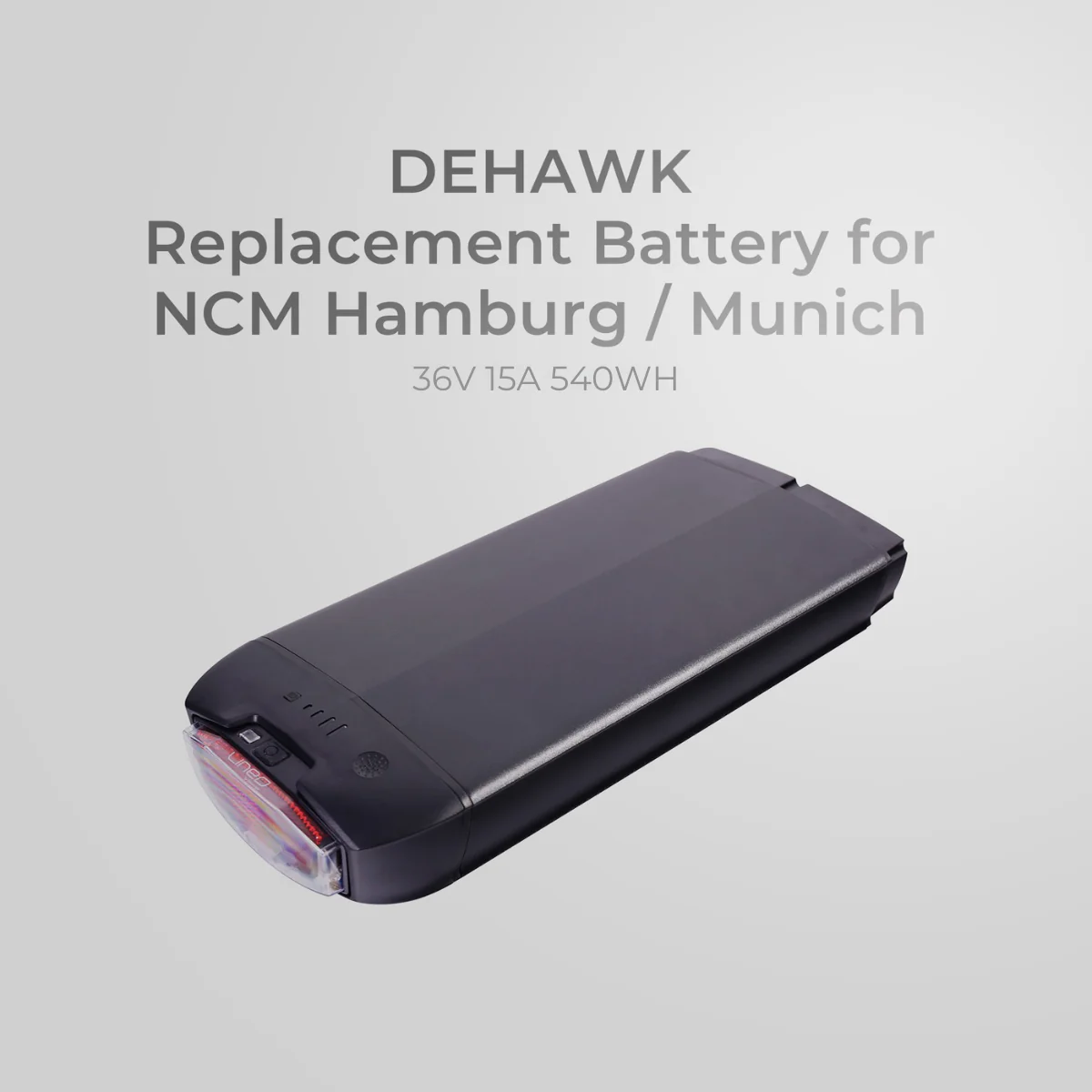

DEHAWK Replacement Battery for NCM Hamburg, Munich [Black] - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description



Model

BKR23615HSB
(36V 15Ah 540WH)

 BR3S3613HB
(36V 13Ah 468WH)

Voltage (nominal)

36V

 36V

Capacity

15Ah

 13Ah

Energy

540Wh

 468Wh

Theoretical range with usual usage

60-80km

 50-70km

Cell

 Lithium-Ionen NCM18650High Power Lithium-Ionen NCM18650High Power

Internal resistance

160mΩ

 =180mO

Minimum capacity

14.5Ah

 12.5Ah

Standard charge

Constant current 2A Constant voltage 42V, 200mA cut-off

 Constant Current 2A, Constant Voltage 42V, 200mA Cut-Off

Standard discharge

Constant current 6.25A, final voltage 28V

 Constant Current 6.25A, End Voltage 27,5V

Cycles

500,> 60% capacity

 500,> 60% Capacity

Max. Charge current

4A

 4A

Max. Discharge current

15A

 15A

Charging temperature

0-45℃

0-45℃

Operating temperatur

0-60℃

0-60℃

storage

Temperature 15-35℃ at humidity 45-75%

Temperature 15-35℃ at humidity 45-75%

Dimensions

Battery Dimensions:
Length x Width x Height
360 x 160 x 70 mm

Battery Dimensions:
Length x Width x Height
360 x 160 x 70 mm

Total weight

3.55kg

 3.45kg

Charger

included (2A charging current)

 included (2A charging current)



Suitable for the following bike type/models

  • NCM Hamburg
  • NCM Munich

Package Includes:

  • 1x Battery
