NCM London Plus

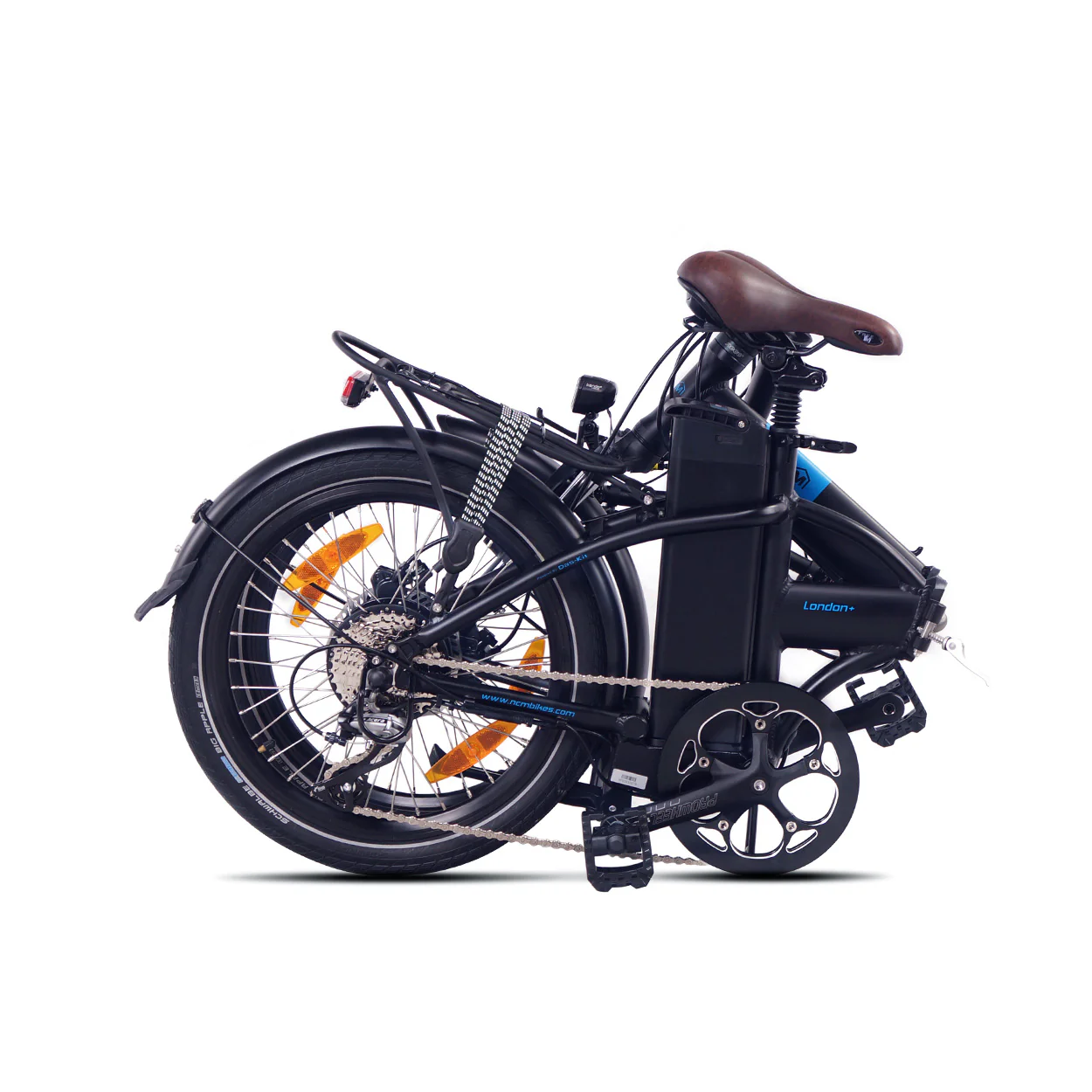

The NCM London Plus is a highly versatile folding E-bike as it can be compacted without tools for even the smallest storage spaces with its folding frame, stem, pedals, and saddle: take it with you when you go on vacation; ride it to your office and park it right next to your chair; or store it at home beside the shoe rack with no inconvenience. The step-through frame makes repeated mounting and dismounting effortless when you’re shopping or running errands. A unique feature of the electronics system allows the motor to run at 4mph without the need for pedaling—perfect for navigating through heavy foot traffic or riding casually alongside someone walking.





BIKE COMPONENTS

Frame: Alu. 6061, 20"*380MM

Suspension Fork: Zoom, CH190

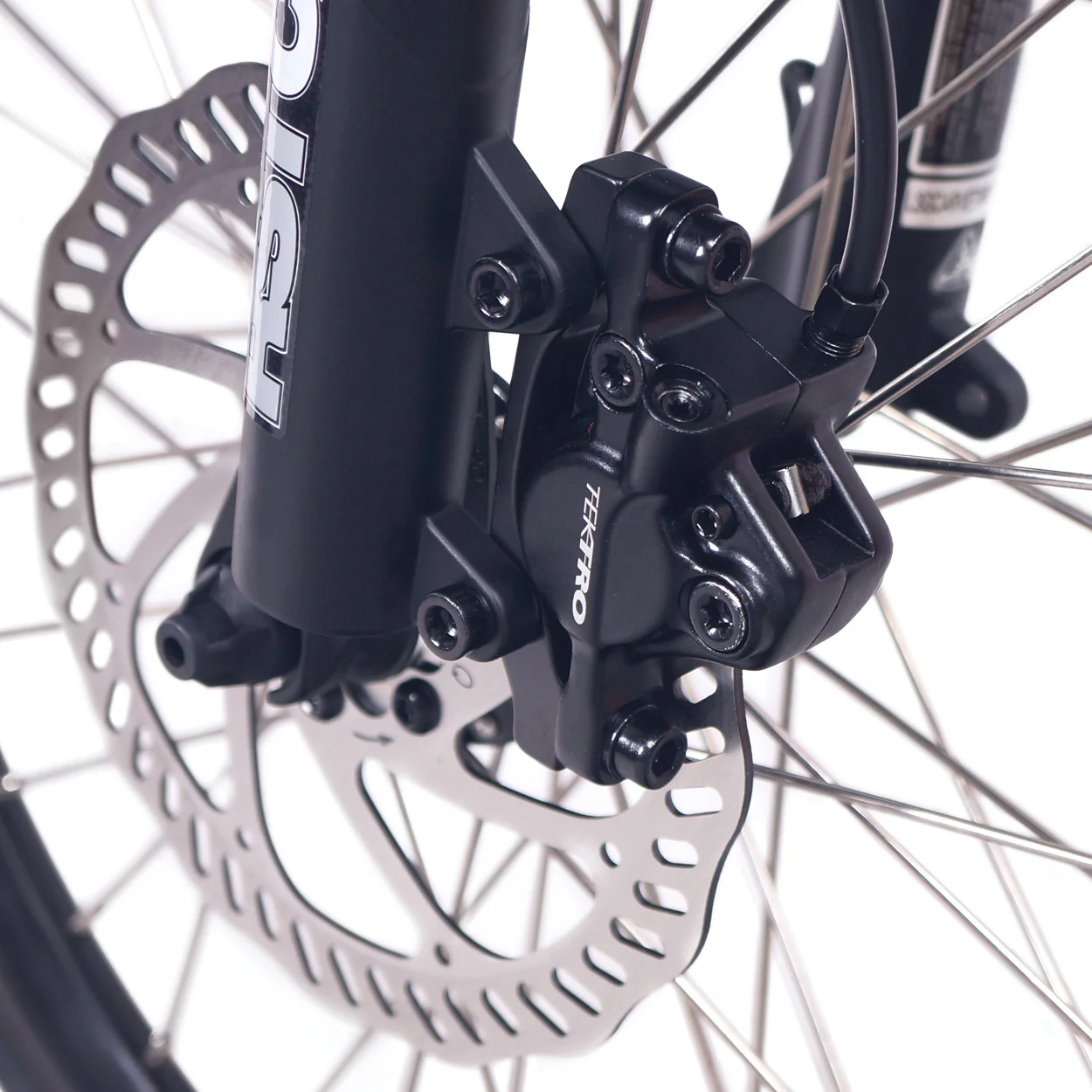

Brake: F/R: Tektro Hydraulic Disc Brakes, HD-E350

Freewheel: 8-speed, 11-32T

Tire: Schwalbe, Big Apple, 20"*2.0

Saddle: Selle Royal, FREEWAY

Crank: Prowheel, SOLID-252AA9, 52T

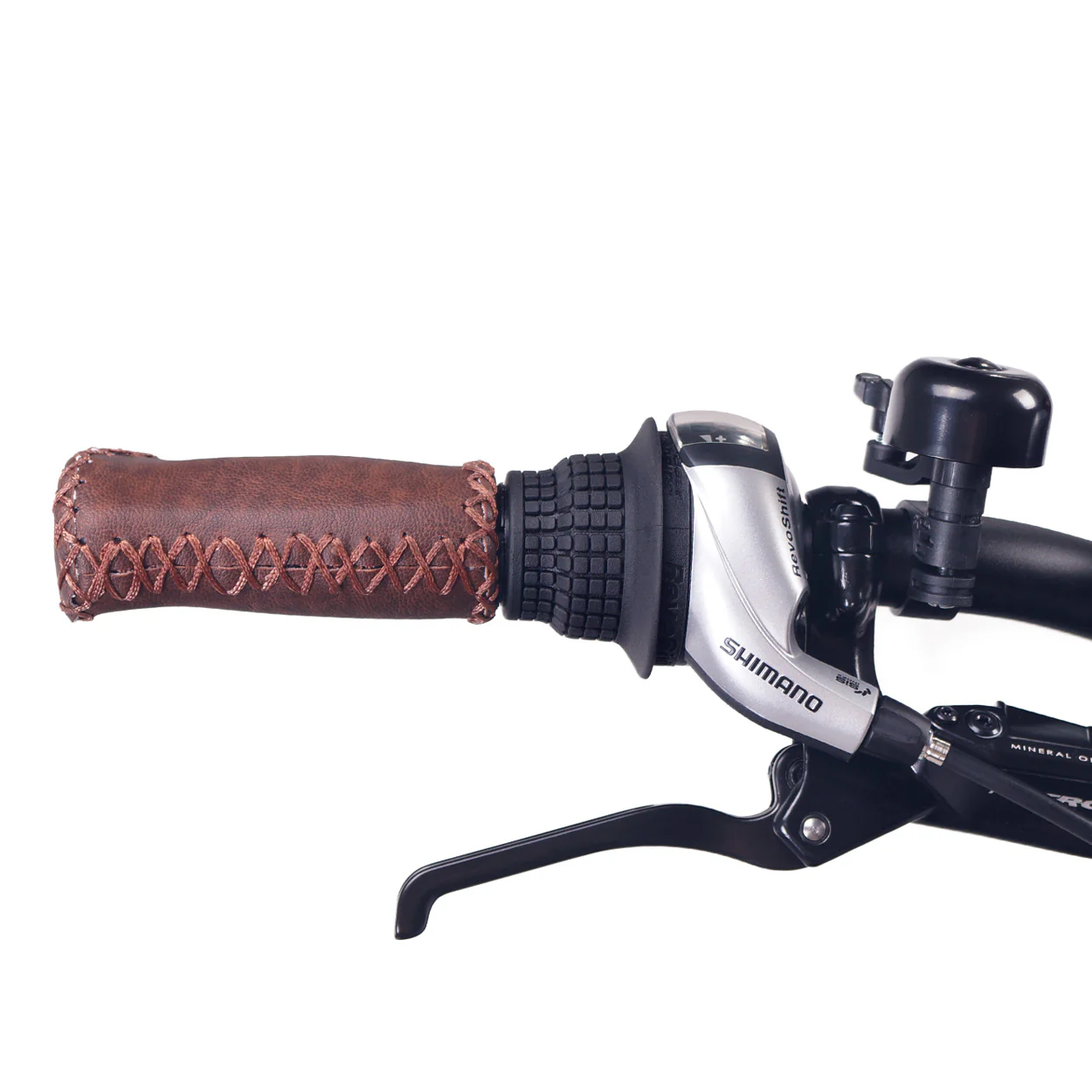

Shifter: Shimano, Acera, 8 Speed

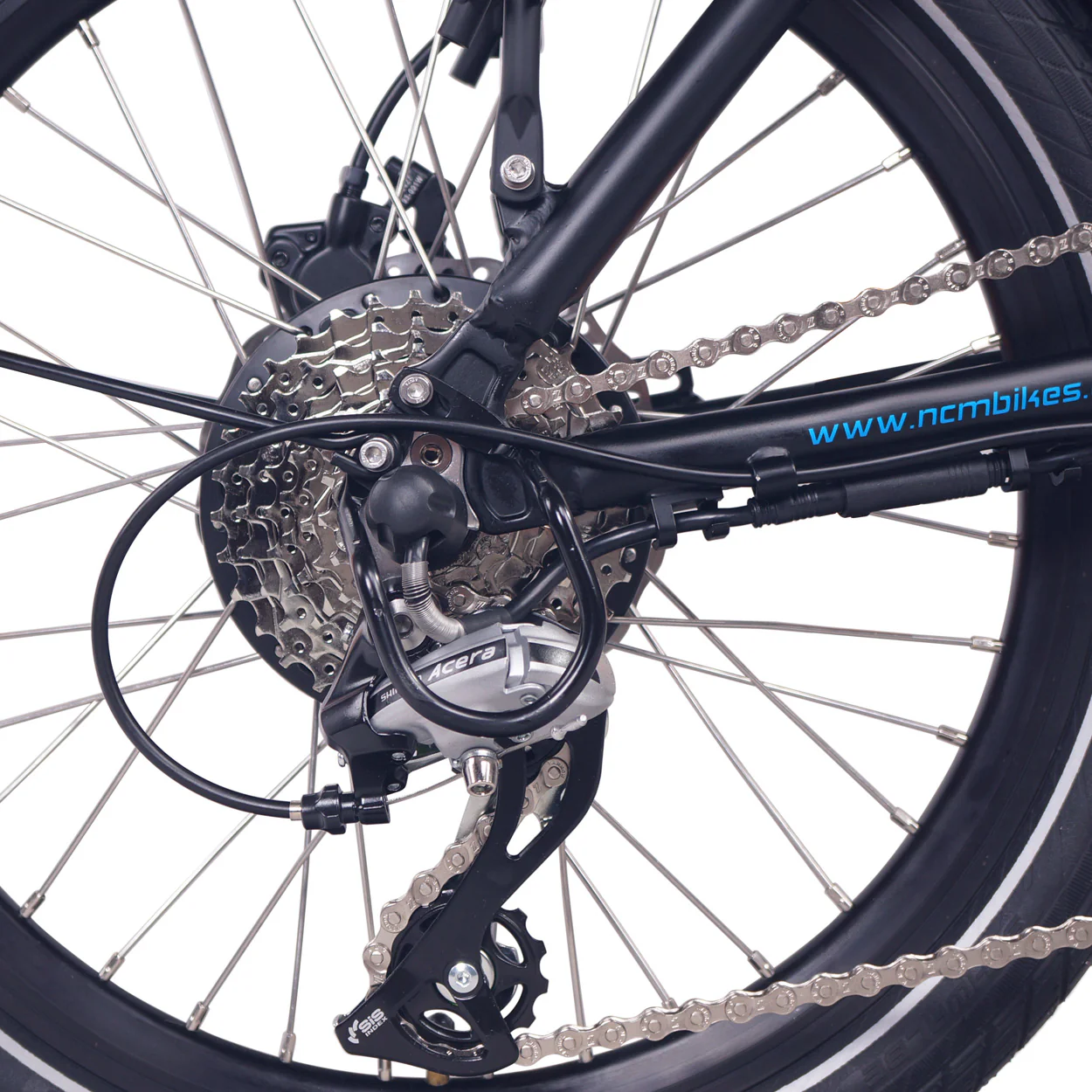

Derailleur: Shimano, Acera, RD-M360, 8-speed





ELECTRIC COMPONENTS

Battery: B1U-3619P, 36V 19Ah, 684W, with USB port

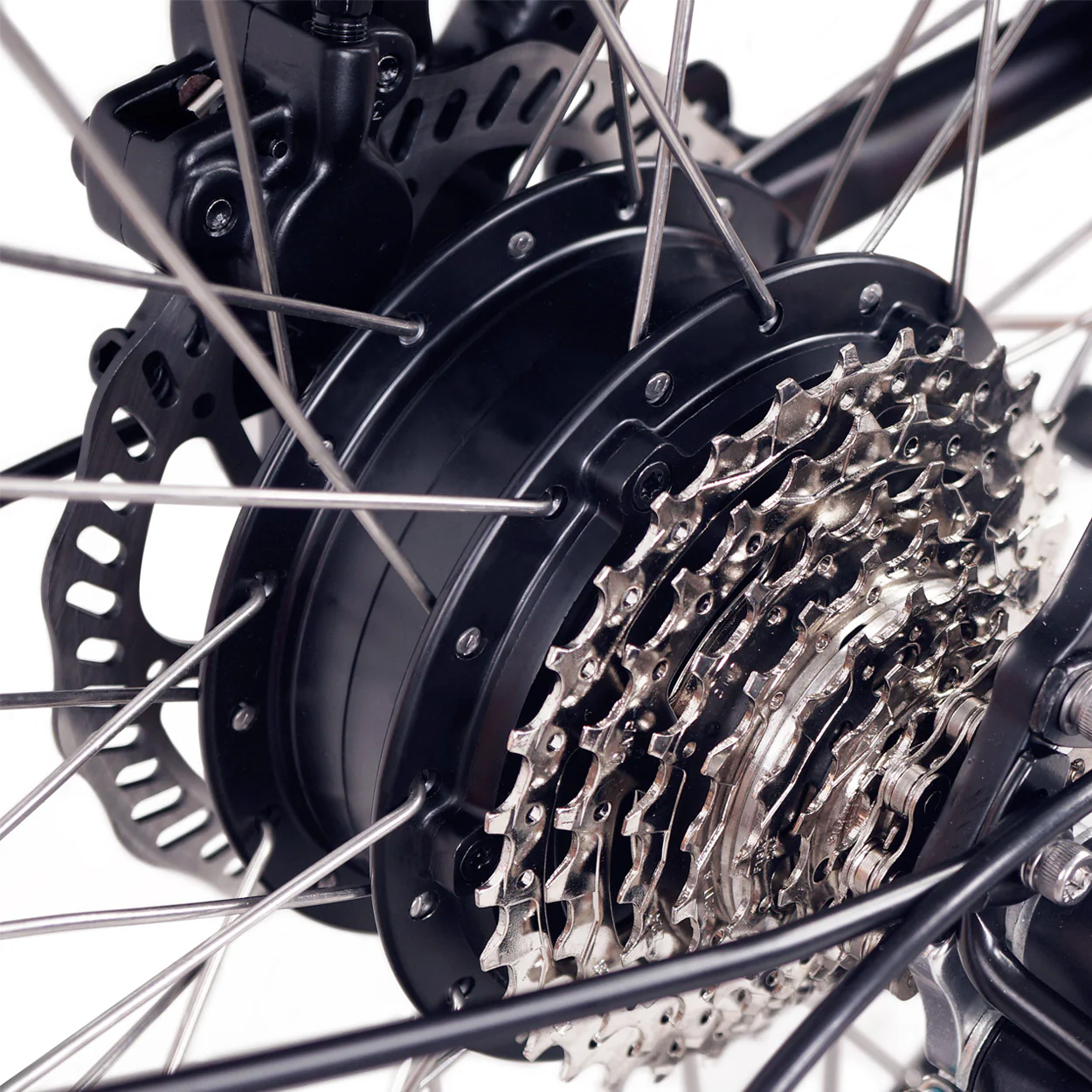

Motor: Das-Kit, R2S Rear-drive motor, 36V 250W, 25KM/H

Controller: Das-Kit, CT4, 36V 14A

Charger: M362AU 36V 2A with XLR-plug

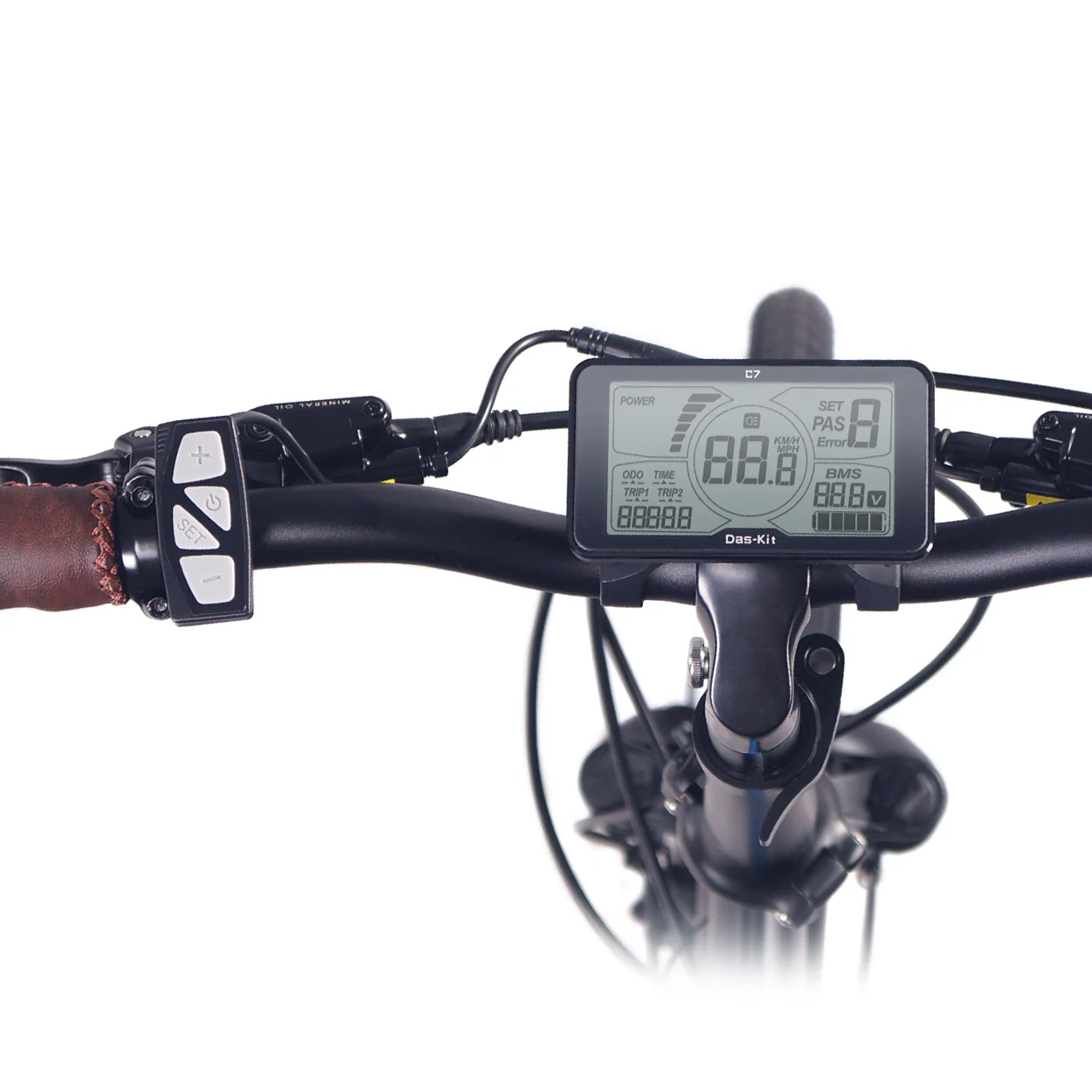

Display: Das-Kit C7, LCD Display

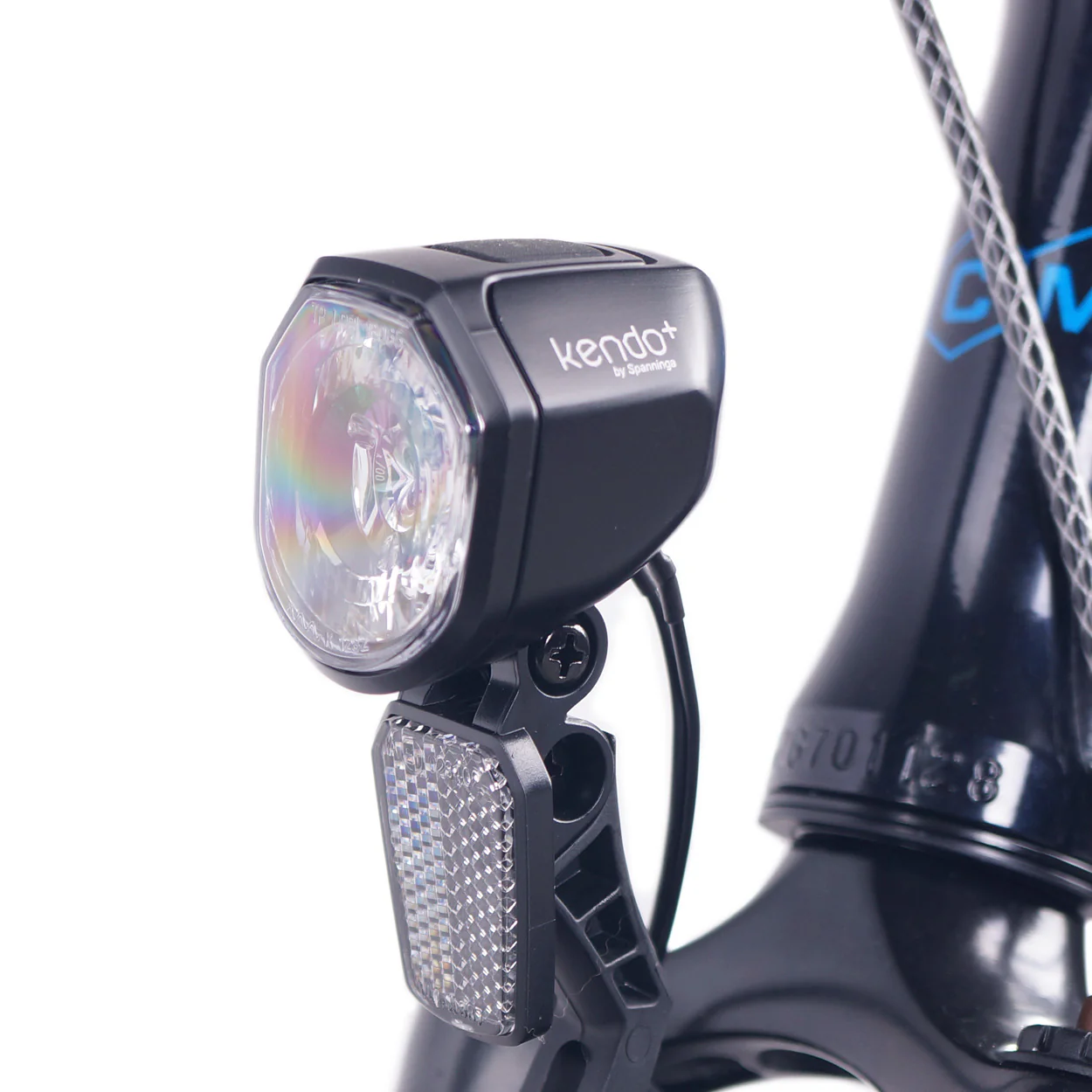

Front Light: Spanninga, KENDO, 36V, 20Lux

Rear Light: Spanninga, SOLO





Weight

Net Weight (with battery): 25.0kg

Battery Weight: 4.1kg

Max Load (driver+bike): 125.0kg
