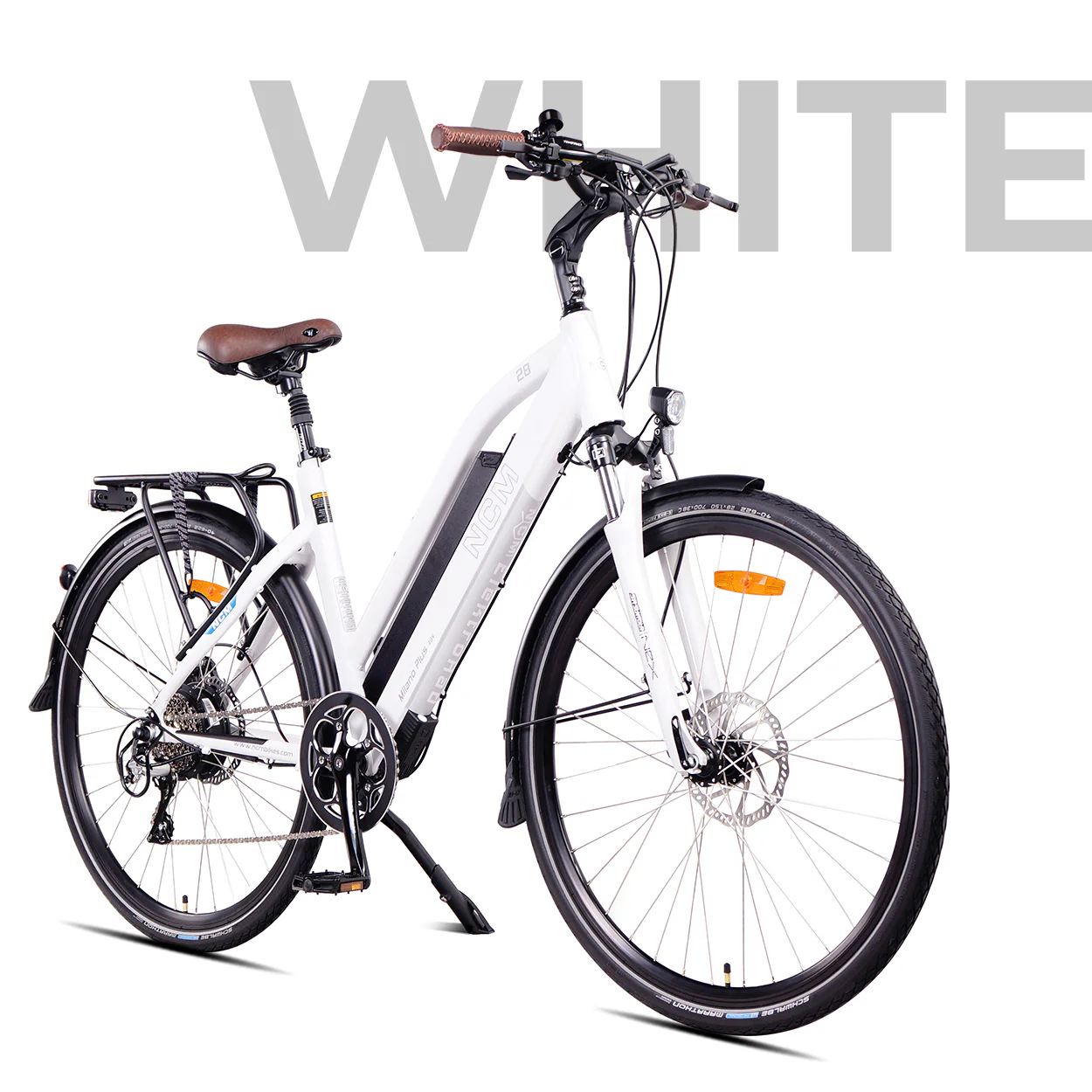

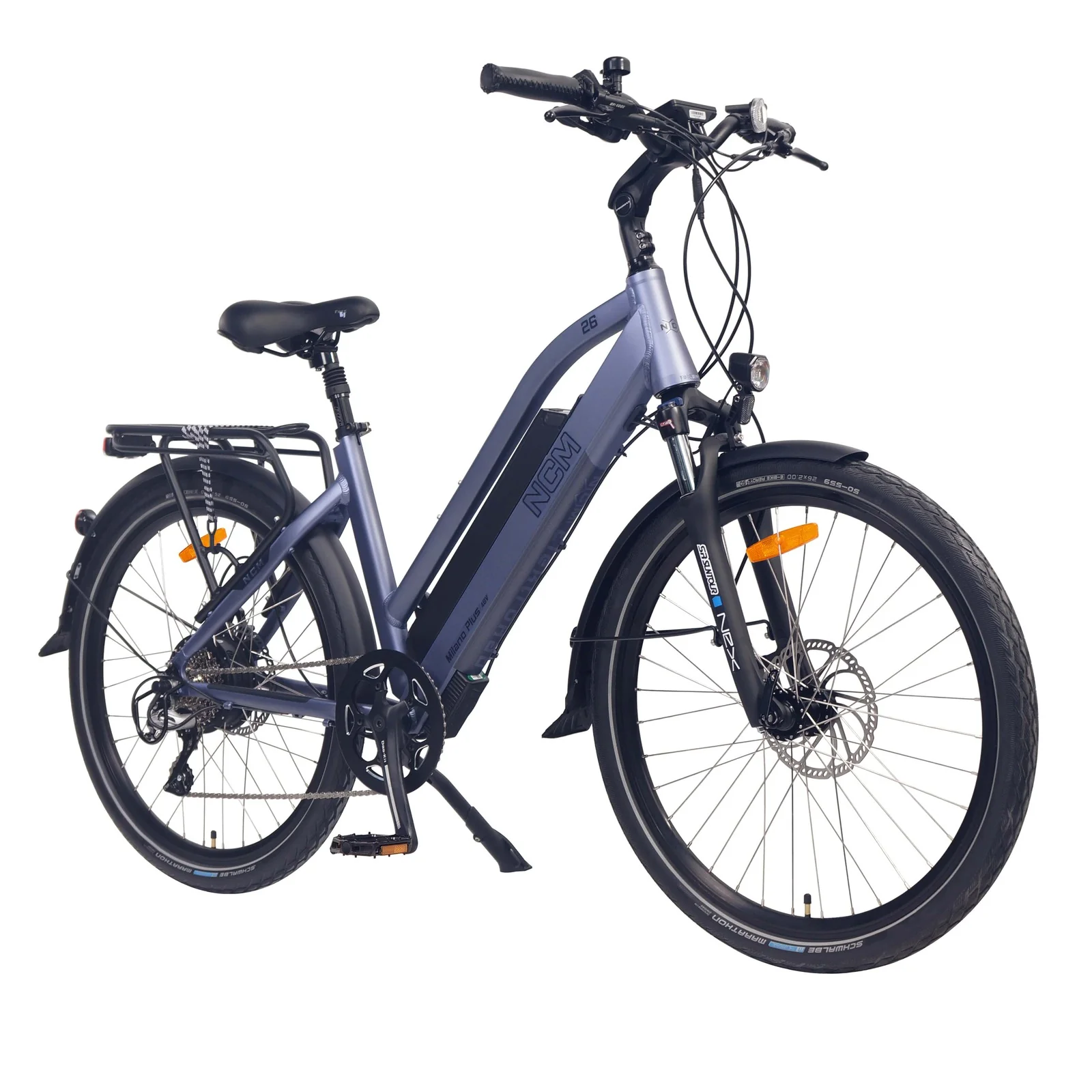

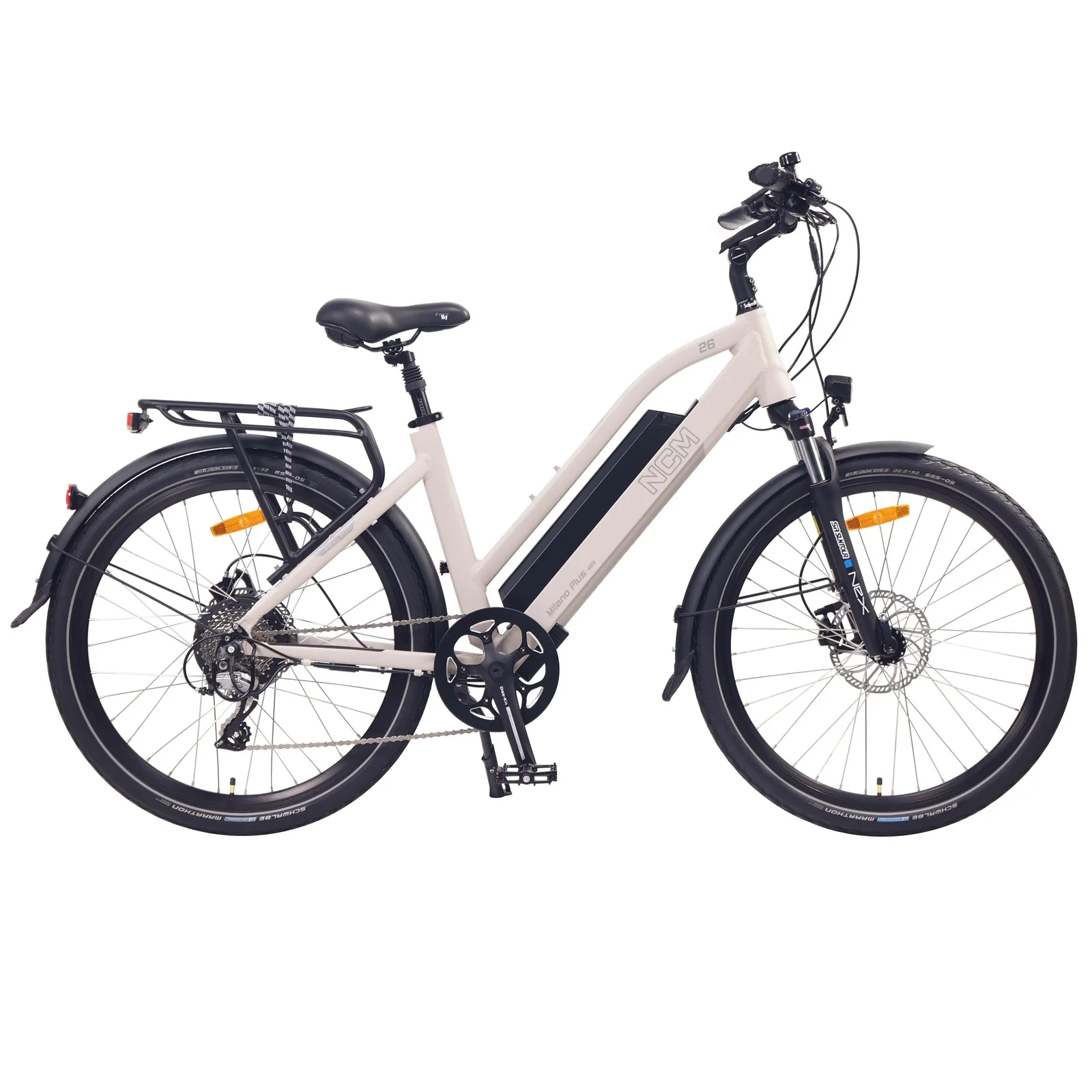

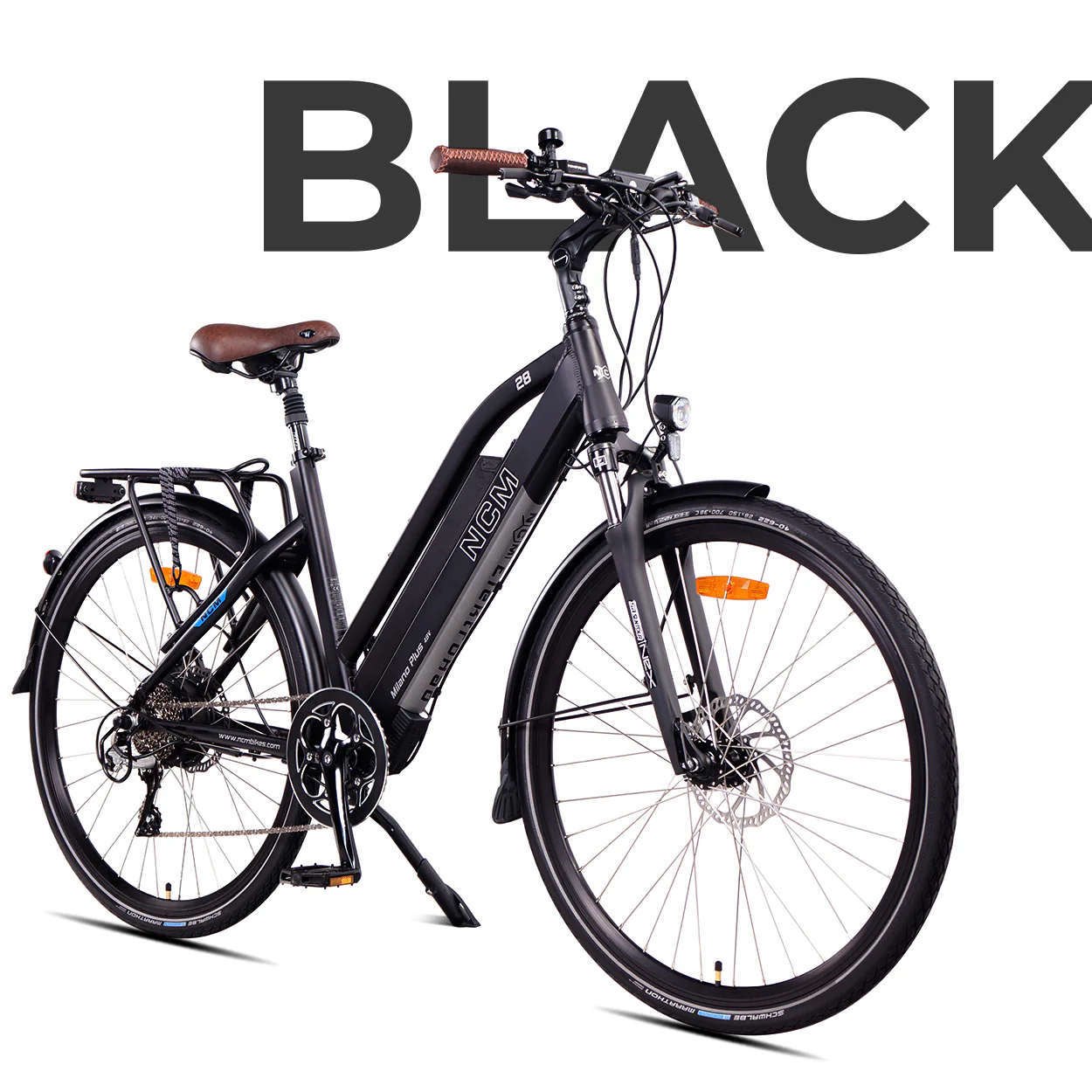

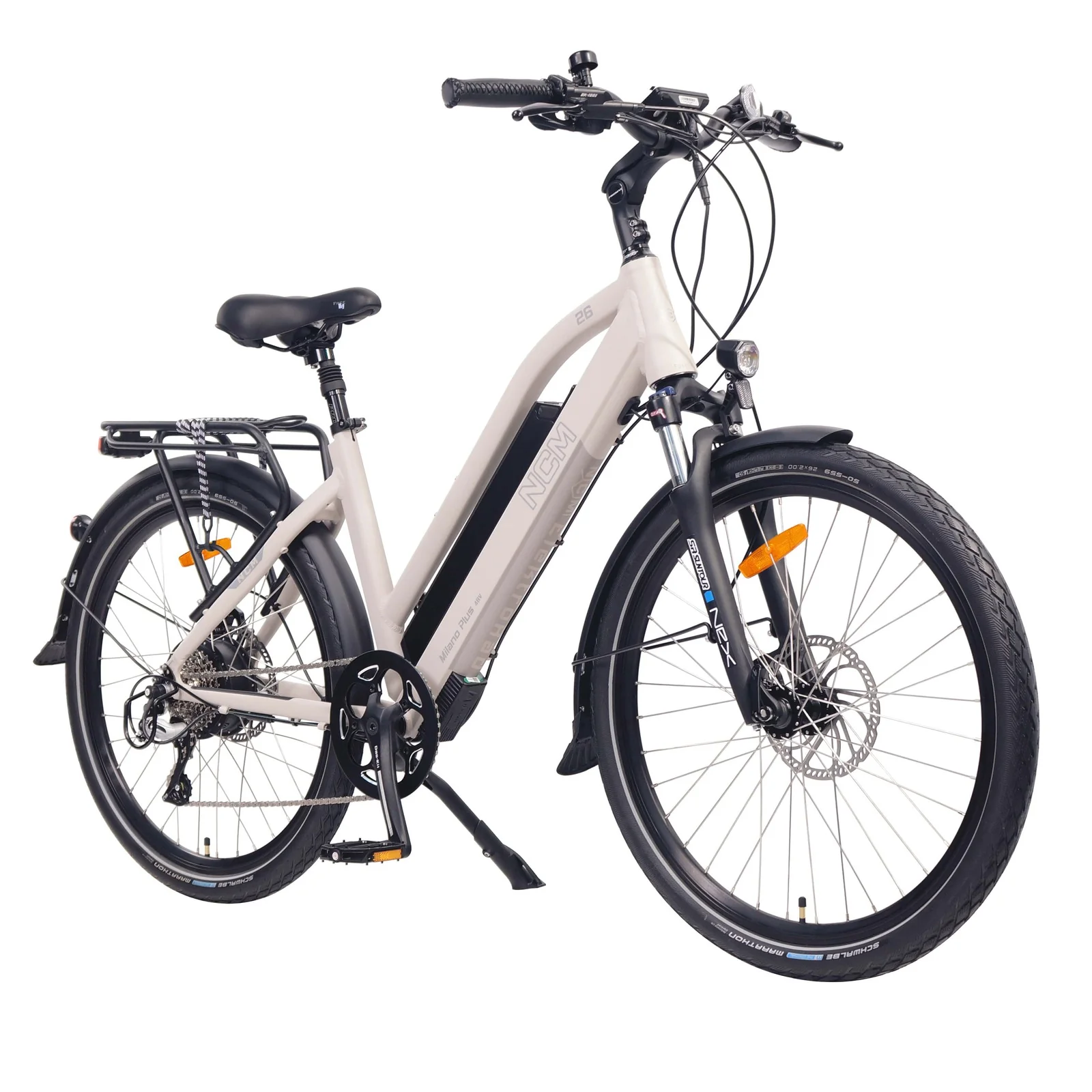

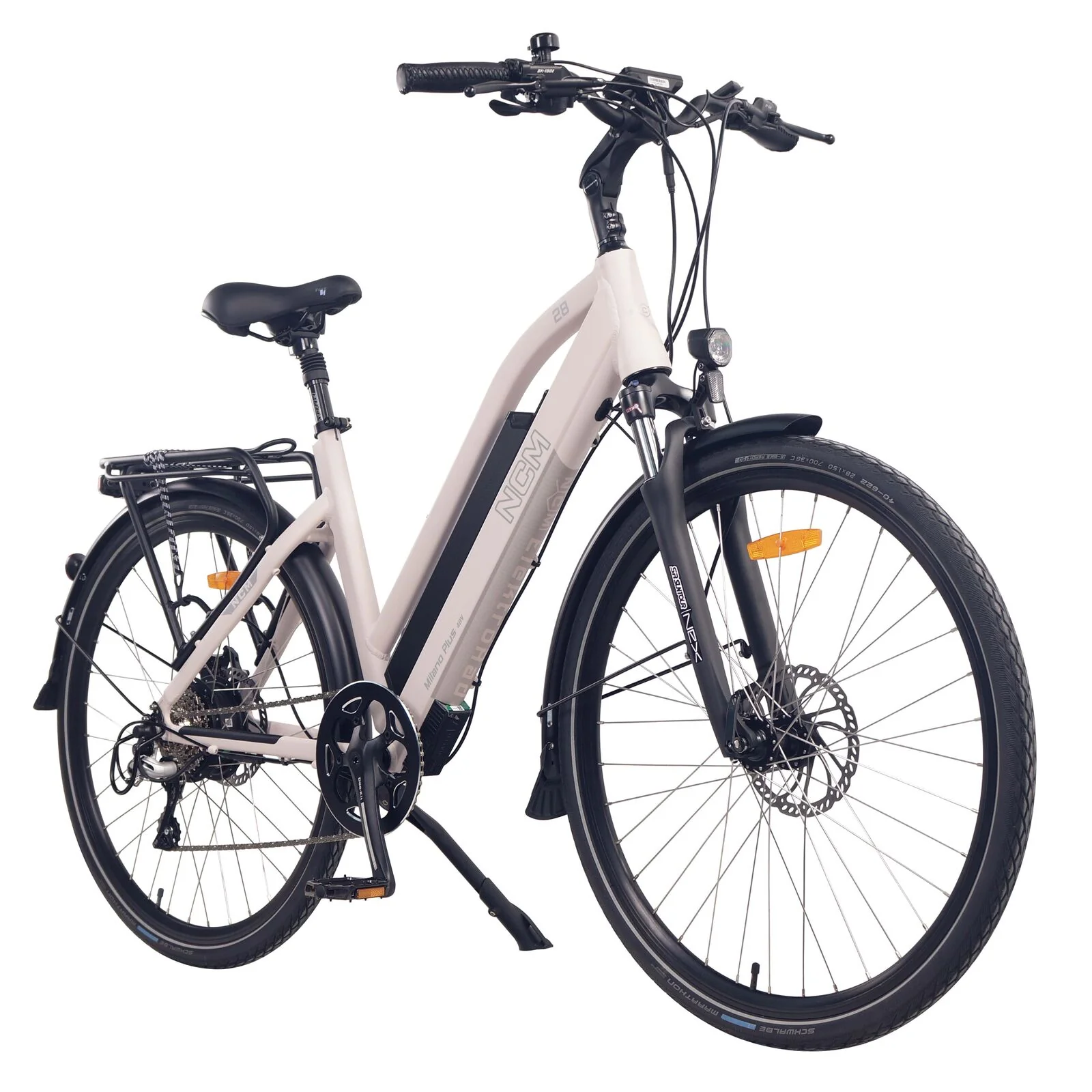

NCM Milano Plus

Balancing accessibility with superior specifications, the NCM Milano Plus is a step-through e-trekking bike for riders that are eager to tackle longer routes alongside their daily rides and want an e-bike with the range and the integrity to help them do it.



BIKE COMPONENTS

Frame: Alu. 6061, 26"*457MM / Alu. 6061, 28"*480MM

Suspension Fork: Suntour, NEX-HLO

Brake: Hydraulic Disc Brakes

Freewheel: LY, 8 Speed, 11-32T

Tire: Schwalbe, Marathon/Big Ben

Saddle: Selle Royal, FREEWAY

Stem: Promax. MA-579

Crank: Das-Kit, CT48A, 48T

Shifter: Shimano, Altus, R:SL-M315-8R, 8 Speed

Derailleur: Shimano, Acera, RD-M360

Chain: KMC, Z51



ELECTRIC COMPONENTS

Battery: Das-Kit, i5-4816, 48V 16AH, 768WH, with an USB Port

Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, CT-i5, 48V18A

Charger: Das-Kit, 48V3A

Display: Das-Kit, C7

Front Light: Kendo, 48V, 30 Lux

Rear Light: DR009, AAA*2



Weight

Net Weight (with battery): 27.0kg

Battery Weight: 4.1kg

Max Load (driver+bike): 140.0kg
